Z3T ZAP-IT® Paper 6 x 6 inches

Z3T ZAP-IT® Paper 6 x 6 inches

Regular price $150.00 USD
Regular price Sale price $150.00 USD
Sale Sold out

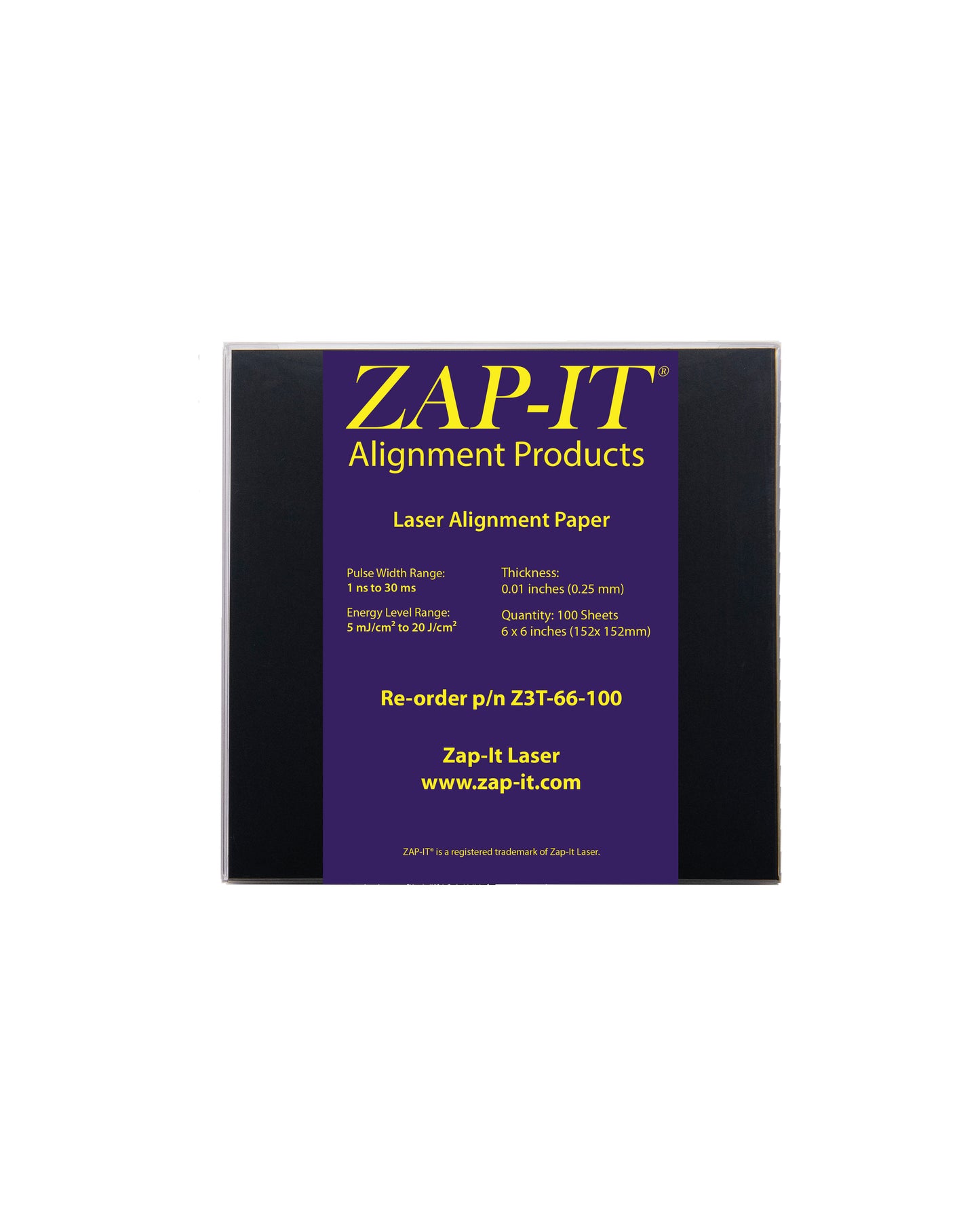

Z3T-66-100, 100 sheets in poly bag with zip closure.
Each sheet is 6 x 6 inches.  0.25mm thick.

Satin black proprietary coating on front.  Plain white back.

Use ZAP-IT® Laser Alignment Paper to Document Laser Beam Characteristics

Beam shape
Energy Distribution

ZAP-IT® Laser Alignment Paper Features

Pulse Width Range: 1 ns to 30 ms
Energy Level Range: 5 mJ/cm² to 20 J/cm²
Sensitive over a broad spectrum, from ultraviolet to infrared.
Used to align external accessories, such as beam expanders, lenses, apertures, attenuators, and power measuring equipment, to the laser beam axis.
Packaged in a reclosable poly box for easy access and storage.

Establishes a stable, visual database


Part numbers: Z-66 (Z66)

To Use ZAP-IT® Paper

Hold the paper in the beam path at the point where the beam imprint is to be recorded. Pulse the laser to produce a permanent visual record, corresponding to the energy distribution within the laser beam. For continuous wave (CW) lasers, use a mechanical chopper or Q-switch to create a short pulse or physically switch the laser on and off rapidly. ... more about using ZAP-IT® Paper



Material Safety Data Sheet

REACH Declaration

RoHS3 Statement
