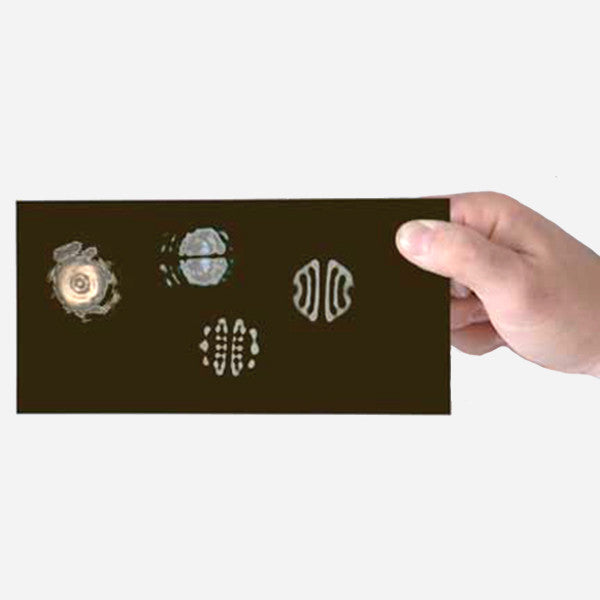

ZAP-IT® Paper 306mm x 120mm

ZAP-IT® Paper 306mm x 120mm

Regular price $89.00 USD
Regular price Sale price $89.00 USD
Sale Sold out
Title

Z-306x120, 25 sheets per package.
Each sheet is 306mm x 120mm +/- 1mm.  0.25mm thickness.  Plain white on reverse side.

Use ZAP-IT® Laser Alignment Paper to Document Laser Beam Characteristics

Beam shape
Mode
Intensity
Divergence
Energy Distribution


ZAP-IT® Laser Alignment Paper Features

Pulse Width Range: 1 ns to 30 ms
Energy Level Range: 5 mJ/cm² to 20 J/cm²
Sensitive over a broad spectrum, from ultraviolet to infrared.
Used to align external accessories, such as beam expanders, lenses, apertures, attenuators, and power measuring equipment, to the laser beam axis.
Packaged in heavy duty resealable poly bags.
Establishes a stable, visual database



Part numbers: Z-306x120

To Use ZAP-IT® Paper

Hold the paper in the beam path at the point where the beam imprint is to be recorded. Pulse the laser to produce a permanent visual record, corresponding to the energy distribution within the laser beam. For continuous wave (CW) lasers, use a mechanical chopper or Q-switch to create a short pulse or physically switch the laser on and off rapidly. ... more about using ZAP-IT® Paper


Material Safety Data Sheet
