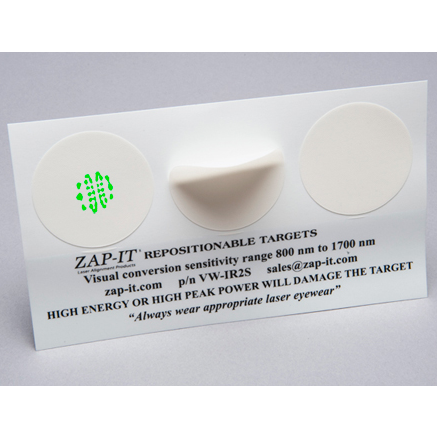

The View-It® IR Spot Detector is a sheet of three 2” diameter thin, flexible IR targets with a low-tack adhesive backing for easy repositioning. Use the View-It® IR Spot Detector to visualize IR laser beams for alignment with components such as lenses, beam splitters, mode apertures, steering mirrors, and beam analyzers.
Sensitivity range: 800 nm to 1700 nm
Sensitivity threshold: >50 µJ/cm2 (pulsed laser) and >100 µW/cm2 (CW)
Beam color converts to: Green spectrum
Spatial resolution: better than 50 grooves/mm, meaning that features of less than 200 µm in size can be resolved visually.
Typical applications: IR - GaAs Laser Diodes (800-830 nm), InGaAs Laser Diodes (880, 960-980 nm), Nd:YAG (1064 nm) Er:Glass (1540 nm), telecommunications.
No fading or saturation – consistent output for steady light input (it’s NOT necessary to constantly move the viewer)
Caution: Do not keep a high energy or high peak power beam on this product for extended periods to avoid damaging this product.
OEM custom configurations please contact us.
